Aluminum Honeycomb Panel

  • Brand Name:ALUMETAL
  • Place of Origin:Shanghai, China
  • Panel Thickness:4-500mm
  • Core Foil Thickness:0.04mm – 0.10mm
  • Fire Resistance:A2 Grade
  • Certificate:CE/S G S/ISO9001
  • Flatwise Compression:1MPa – 20MPa
  • Coating:PE PVDF FEVE ANODIZED & Mill Finish
  • Application:Outdoor
  • Surface Treatment:Anodized, Brushed, Mirror, PE Coated, Printing, PVDF Coated, FEVE

Product Description

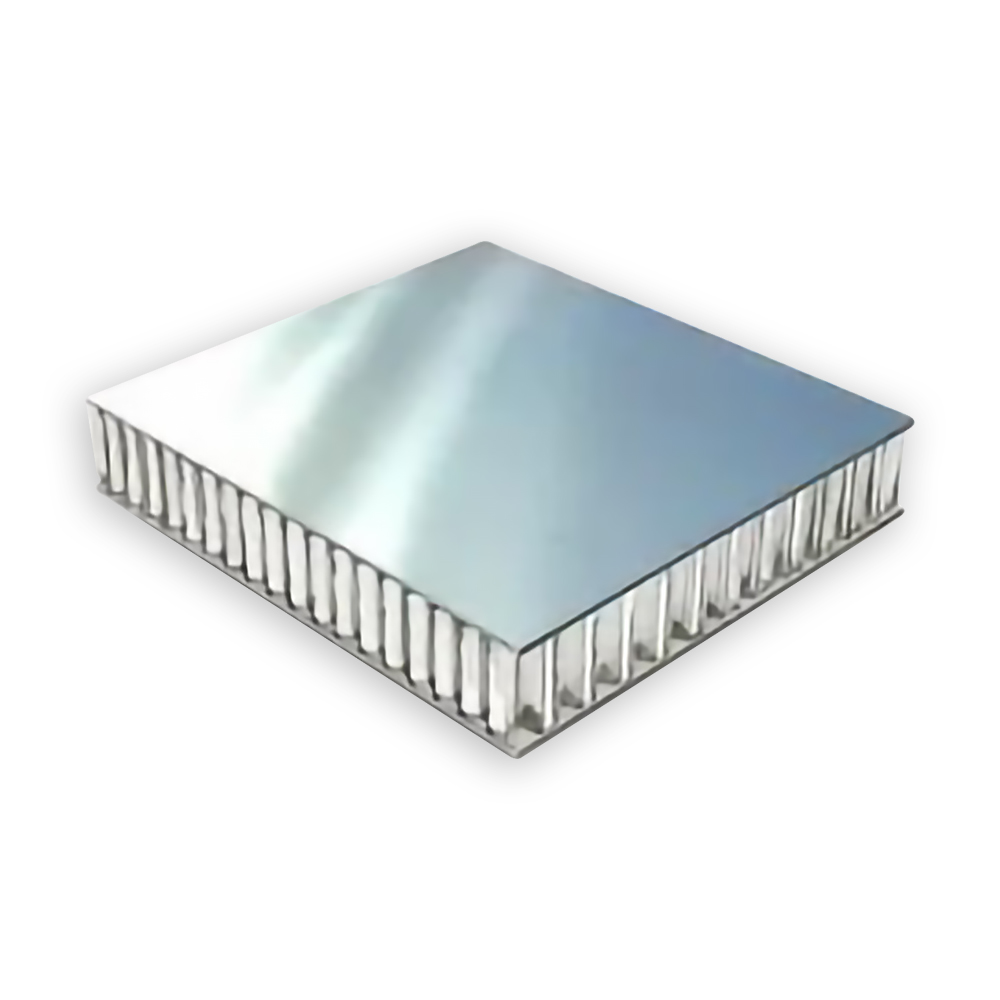

Aluminum Honeycomb Panel

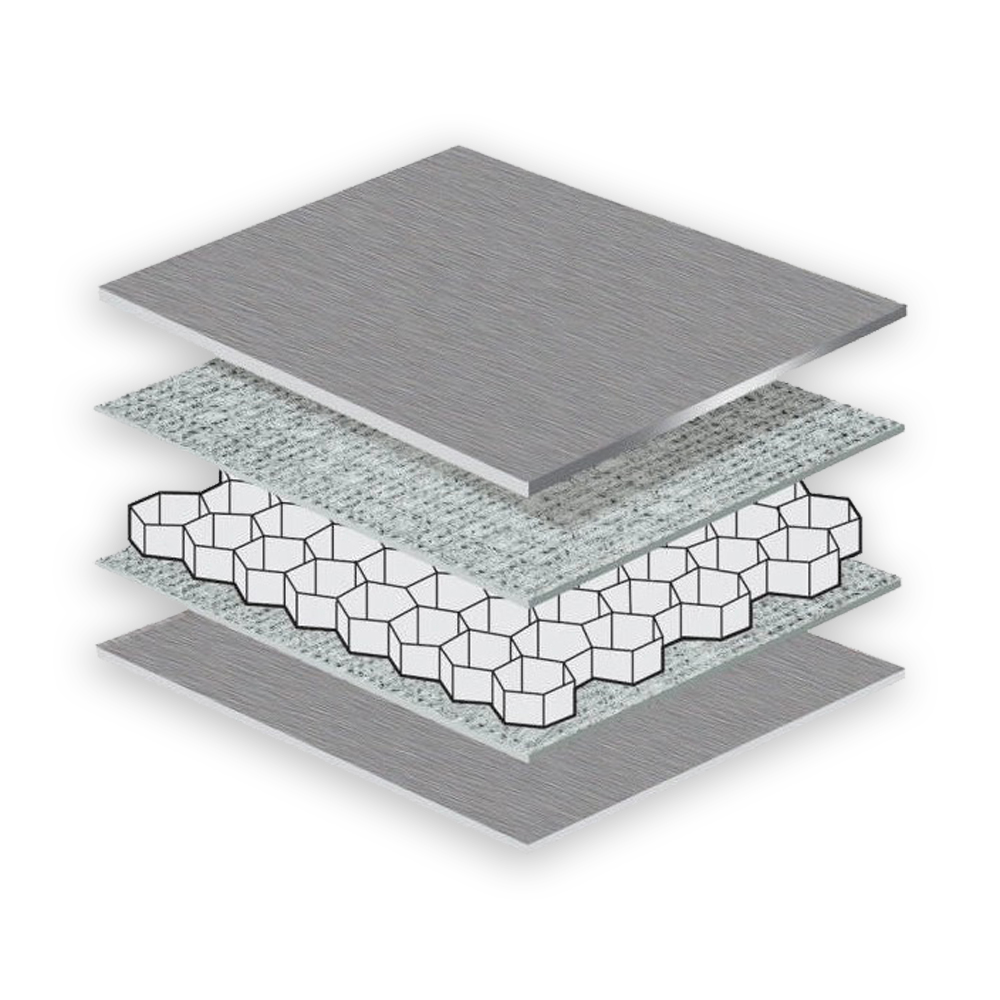

Aluminum honeycomb panel, also known as aluminum honeycomb composite panel, is a lightweight and high-strength building material made of two aluminum sheets and a honeycomb core made of aluminum or other materials. The aluminum sheets are bonded to the honeycomb core using high-strength adhesive.

Aluminum honeycomb panel has become increasingly popular in the construction industry due to its excellent properties, such as lightweight, high strength, good corrosion resistance, good sound insulation and thermal insulation performance, easy installation, and attractive appearance. It can be used in a variety of applications, such as exterior and interior wall cladding, ceiling, roofing, partition, door, and furniture.

Aluminum Alloy AA3003 H18, AA5052 H18
Total Panel thickness 4mm, 8mm, 10mm, 15mm, 25mm, Max 500mm
Aluminum Skin thickness 0.5mm, 0.8mm, 1mm, 1.5mm, Max 3mm
Coating: PVDF, PE, Anodized, Mill Finished, Embossed, Granite etc
Length: 2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm
Width: 1000mm, 1220mm, 1250mm, 1500mm, Max 2200mm
Honeycomb Core Foil Thickness: 0.02mm, 0.04mm, 0.05mm, 0.06mm, 0.08mm Max 0.1mm
Honeycomb Core Cell Size: Micro-Aperture Honeycomb:1/10”(2.6mm), 1/8”(3.17mm), 1/6”(3.47mm), 1/5”(5.2mm), Regular Honeycomb: 1/4”(6.35mm), 1/3”(8.47mm), 3/8
”(9.53mm), 1/2”(12.7mm), 3/4”(19.05mm), 4/5”(20.32mm), 1”(25.9m)
Honeycomb Core Cell Side Length: Micro-Aperture Honeycomb:1.5mm, 1.83mm, 2mm,2.5mm, 3mm, Regular Honeycomb: 4mm, 5mm, 6mm, 7.5mm, 10mm, 12mm, 15mm
Edge: Close Edge, Open Edge



  • – Building exterior, interior wall covering, ceilings, partitions
  • – Column covers and soffit and fascia panels
  • – Signage and white boards
  • – Canopy fascias and soffits
  • – Doors
  • – Furniture and Tables
  • Application:Building&Construction,Solar,Ground Transportation,Marine,Furniture,Industry

Alumetal Aluminum Honeycomb Panel advantages

The honeycomb core structure of the aluminum honeycomb panel provides a high strength-to-weight ratio, making it ideal for use in applications where weight reduction is critical. The panel also has good thermal and acoustic insulation properties due to the air space within the honeycomb core. The aluminum surface of the panel can be treated with various coatings and finishes to enhance its appearance and improve its durability.

Aluminum honeycomb panel is a sustainable building material as it is recyclable and has a long service life, reducing the need for frequent replacement. It is also fire-resistant and can withstand extreme weather conditions, making it suitable for use in areas with high fire risk or harsh weather.


Metal Colors Series

Check Alumetal color chart

Matt Colors Series
Glossy Series
Brushed Series
Granite Series
Wooden Series
Nano /Nacreous Series
Customized color can be matched as sample or Ral and Pantone color code

Our Certificate

Packaging & Shipment

1) LCL by wooden pallet package ,fumigation wooden pallet is available
2)FCL by wooden pallet package loaded in the container
3)FCL in bulk loaded in the container
4) Customized package according to your demands

7-15 days after receipt of payment(depend on order quantity).
lmportant shipping particular will be sent to you by E-mail after delivery of the goods.

Sample Availability & Policy:
Sample courier freight will be paid by buyer
which can be refunded after order placed ,or send freely

Aluminum Honeycomb Panel packaging & shipment
Product Characteristics
  • 1) Our aluminum composite panel is with light weight, high intensity, and easy to maintain, cut, bend, arch and install. The panel average weight is 3.5 – 5.5 kg/sqm
  • 2) Alumetal aluminum composite panel is extremely good resistance against weather, acidity and alkaline, great thermal insulation, acoustic insulation and damping
  • 3) Alumetal aluminum composite panel surface is dust-proof treated, smooth, flat and easy to maintain; just a neutral cleaner with water can totally renew the panel
  • 4) The aluminum surface is tough and the core PE panel is flexible to give the panel high impact resistance
  • 5) Fireproof and noise absorptive (the PE core absorbs noise and the aluminum resists fire)

A1:1. MOQ (Minimum Order Quantity): 500m² but it can be less if we have stocks

2. Delivery Time: within 15 days after receiving deposit

3. Payment: 30% TT in advance ,70% against BL of copy or LC

A2:Yes, stable good quality is key for long time business cooepration.

Factory have passed ISO9001:CE SGS, etc .

A3: Yes, OEM accept. Just need to give us yours logo, we will send some protective film design for your choose

A4: 1. Width: 1000-1575mm; 1220mm, 1250mm, 1500mm are recommended.

2. Length: accept custom length, recommend 2440mm, 3050mm, 4050mm, 5000mm

3. Panel Thickness:2mm-6mm; recommend 3,4mm

4.Aluminum thickness:0.05-0.5mm

A5: Yes, samples are available if you are interested in our products.

Want to Know more details about this product
