Aluminum Corrugated Panel

  • Brand Name:ALUMETAL
  • Minimum Order Quantity:500 Square Meters
  • Certificate:SGS, CE, ISO 9001
  • Warranty: 15 Years
  • Application: Residential, Commercial
  • Function:Anti-Static, Antibacterial, Fireproof, Mould-Proof
  • Surface Treatment:Anodized, Brushed, Mirror, PE Coated, Printing, PVDF Coated, FEVE

Product Description

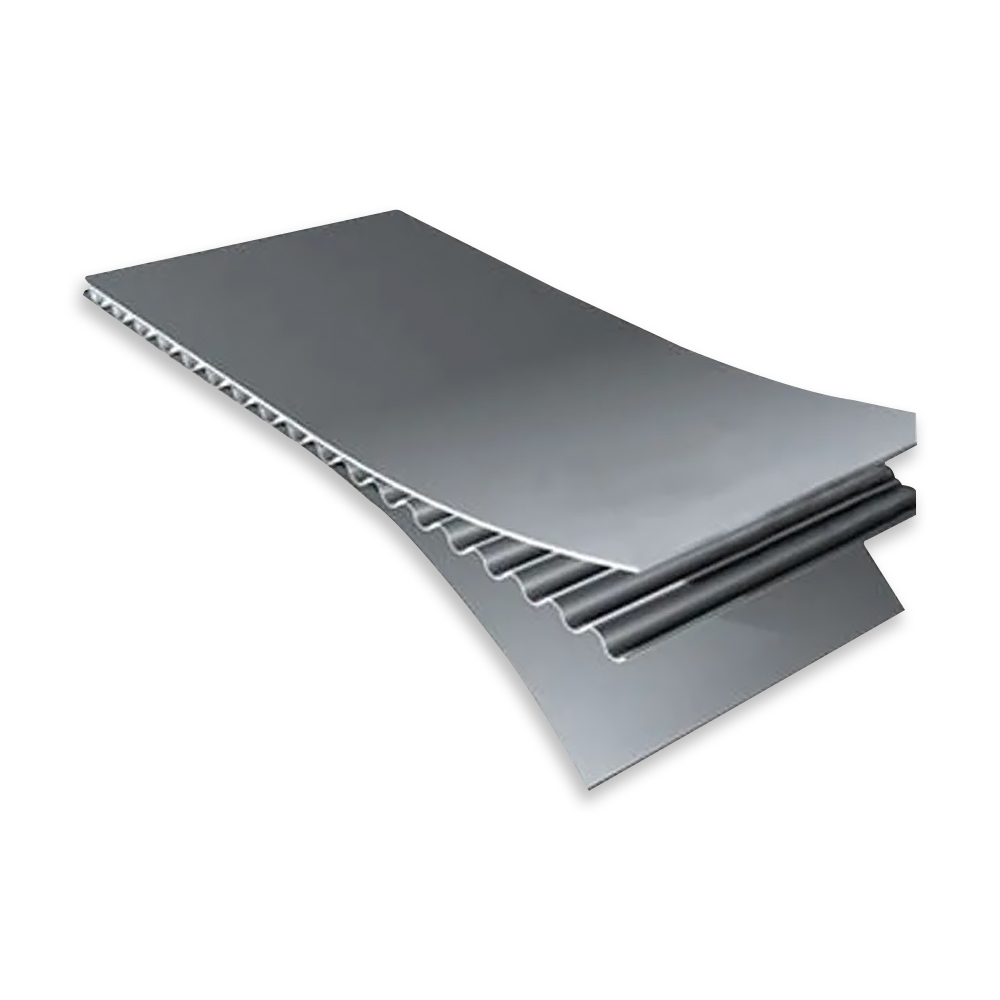

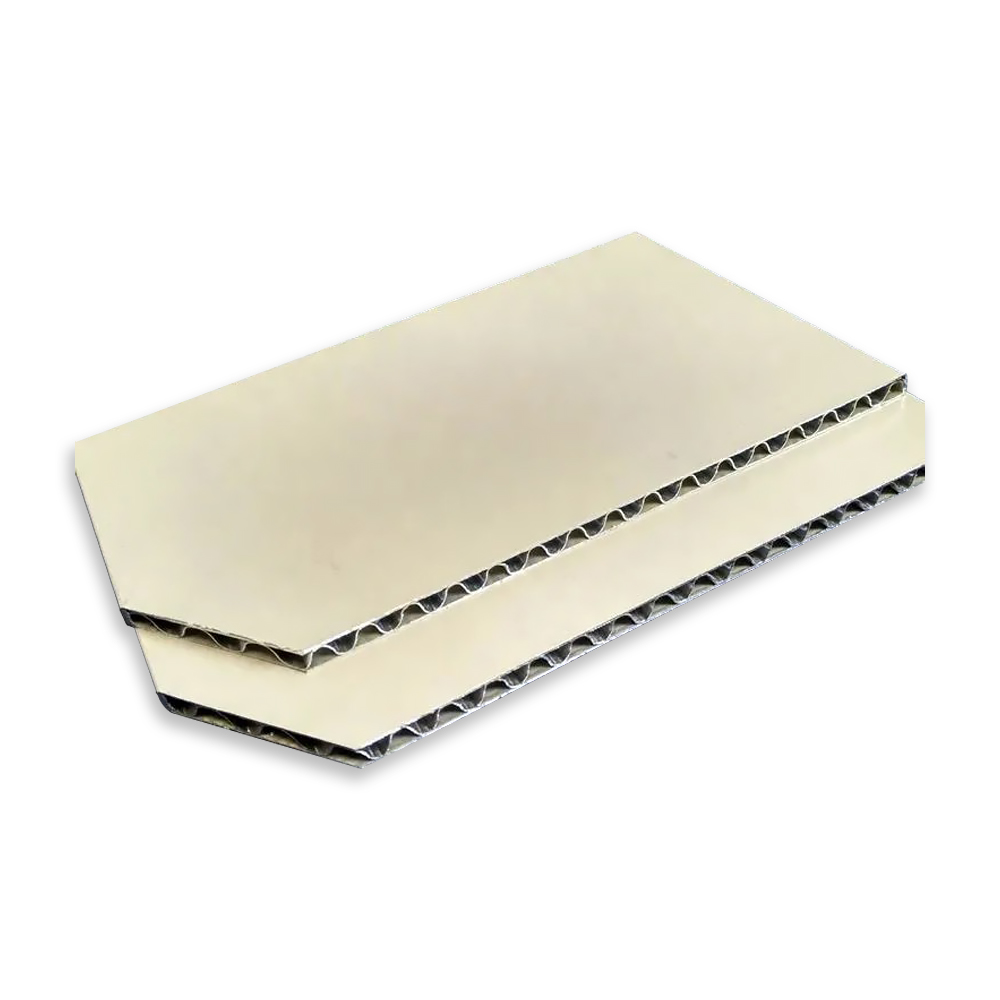

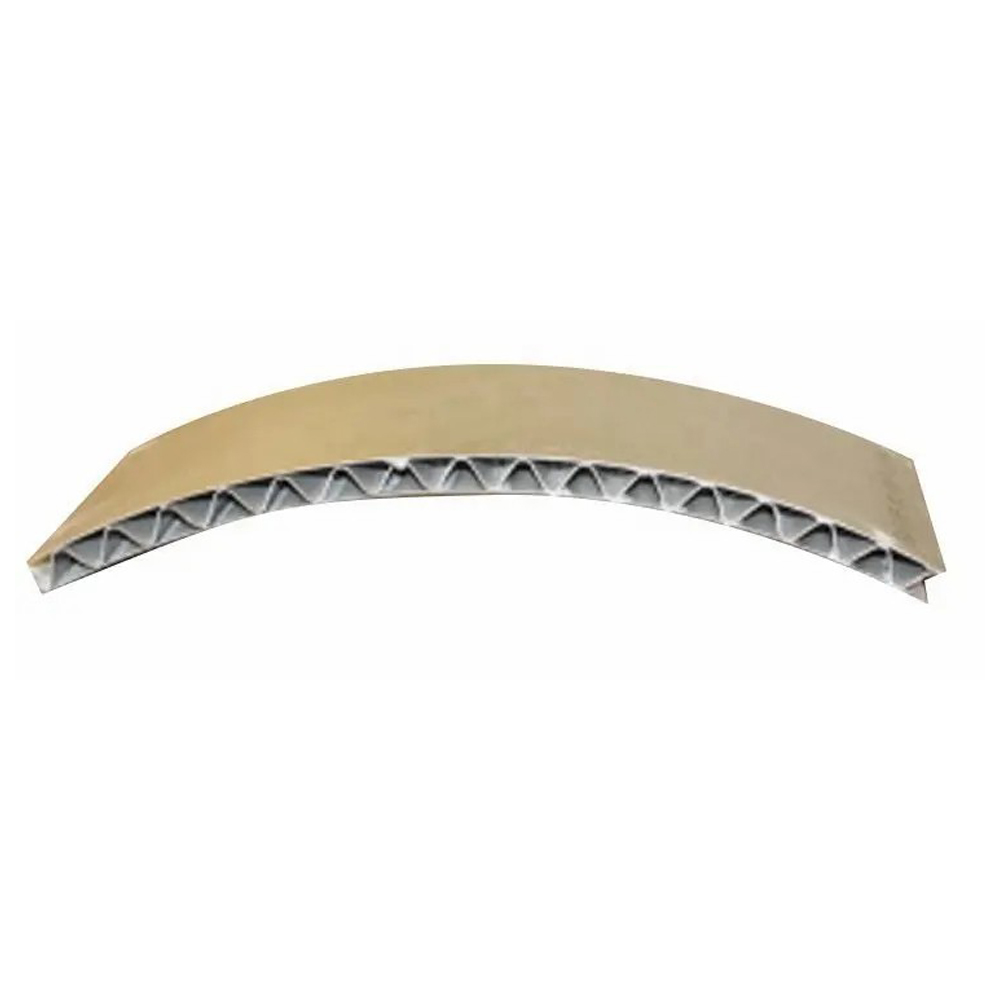

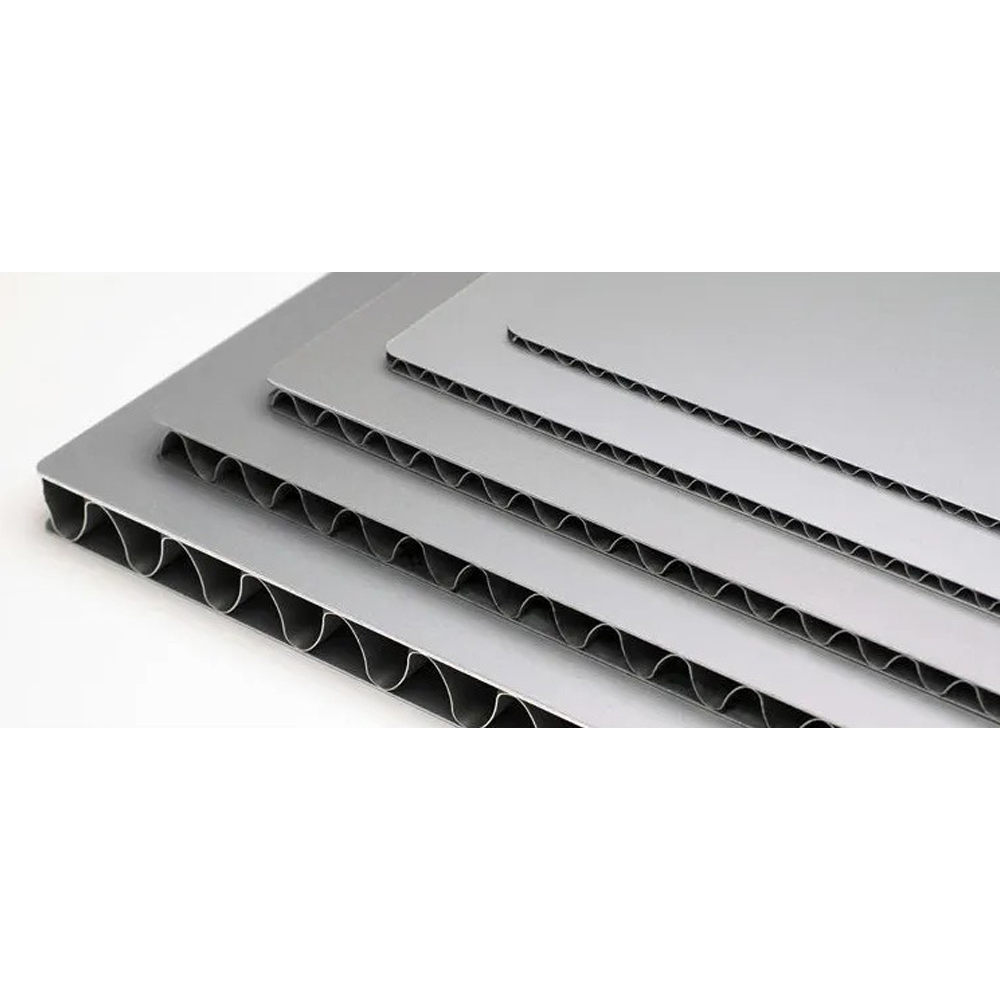

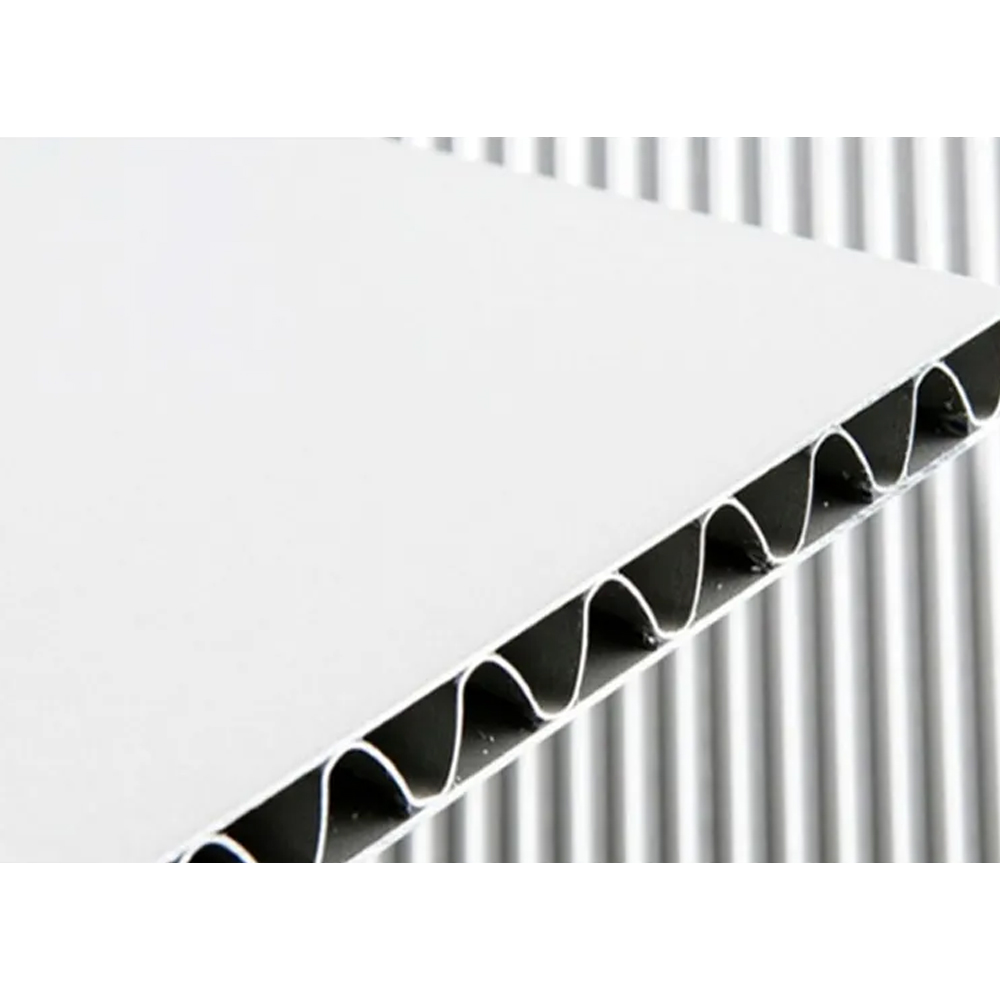

Fireproof Aluminum Corrugated Panel B1 A2

Aluminum corrugated panel is a type of building material that is made of aluminum sheets formed into a wavy or rippled pattern. The panel is lightweight and durable, making it a popular choice for a variety of construction applications.

Aluminum corrugated panels are commonly used for roofing, siding, and ceiling applications in residential, commercial, and industrial buildings. The panels are easy to install, and they come in a variety of colors and finishes, making it possible to create a custom look for any building.

In addition to its aesthetic appeal, Aluminum corrugated panels are also known for their energy efficiency and durability. They are resistant to corrosion, moisture, and extreme weather conditions, which makes them ideal for use in areas with harsh climates.

Specifications Of Aluminum Corrugated Panel
Width 1220mm, 1250mm, 1500mm(maxium)
Length Up to 5800mm.
Total Panel Thickness 4-6mm
Aluminum Alloy AA1100,AA3003,AA5005 …(Other Grade On Requirement)
Skin Thickness 0.4mm to 2mm
Surface Teatment PE coating , PVDF coating, FEVE coating

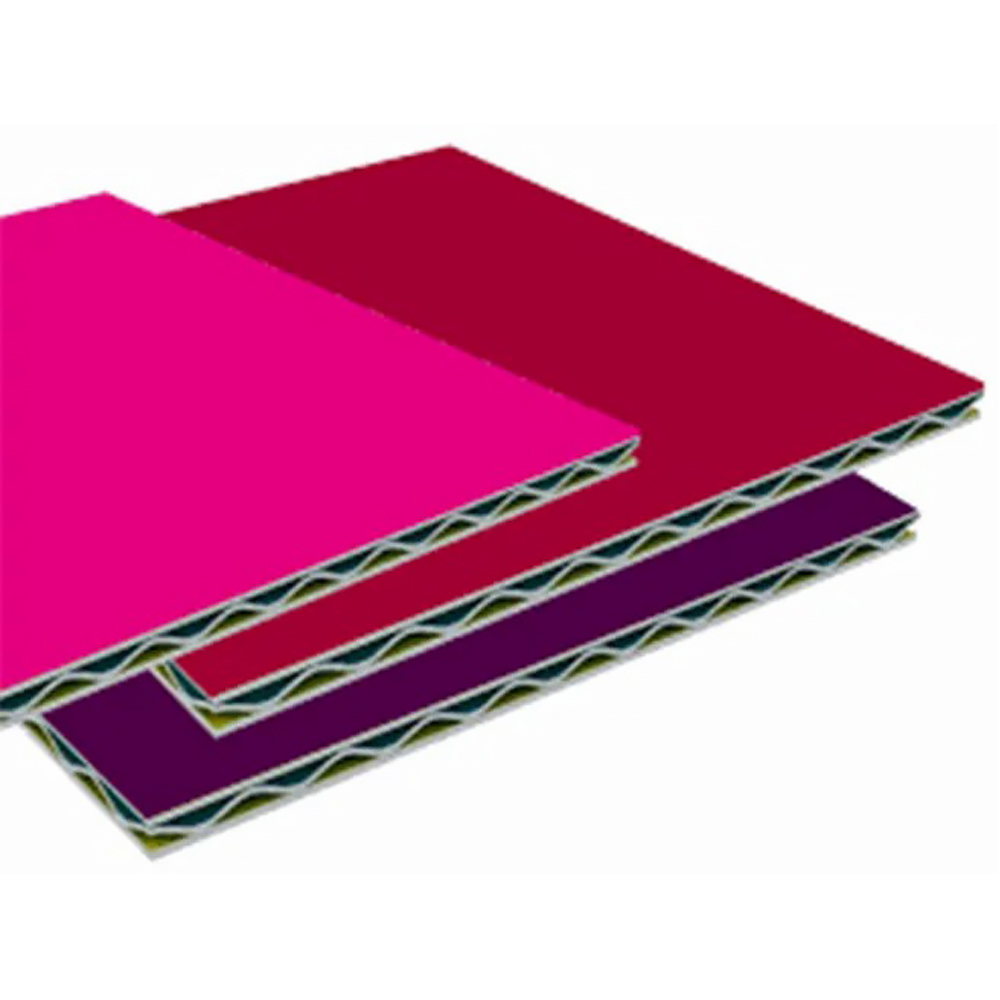

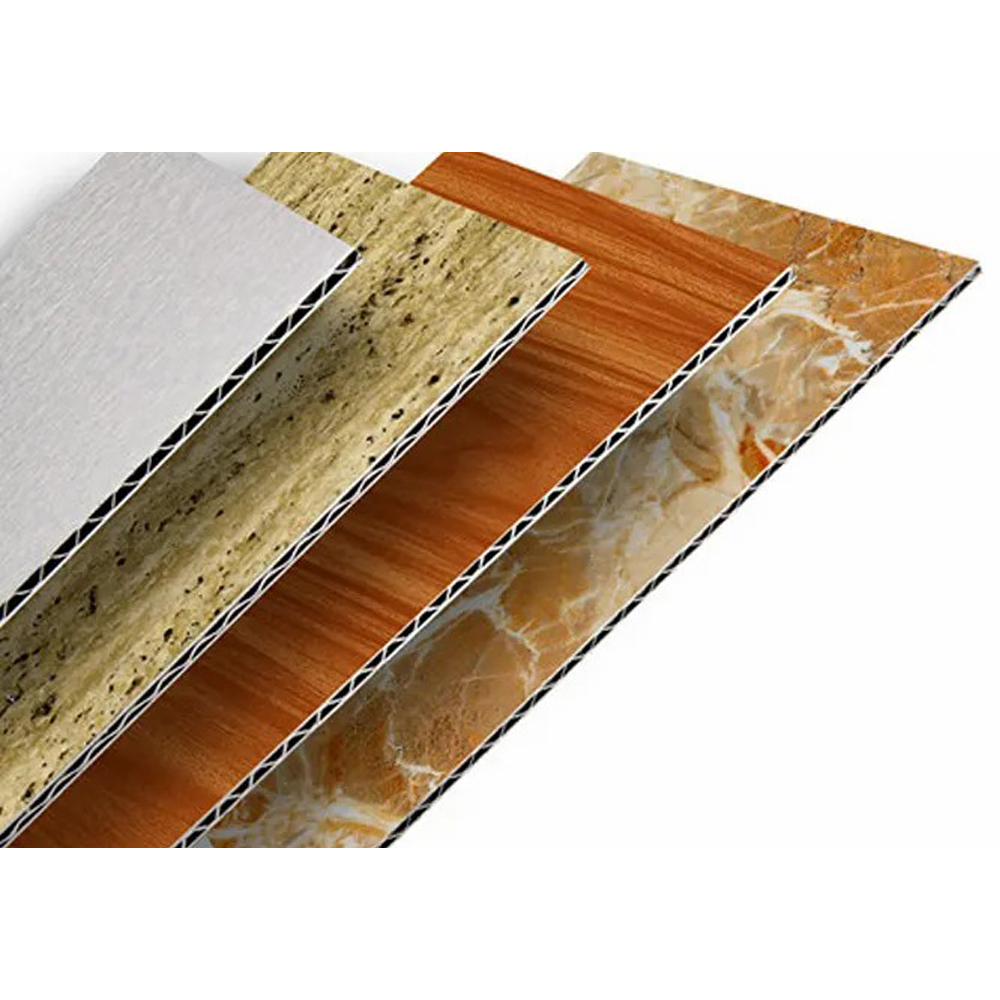

Color Metal color, matte color, high glossy color, nano, brushed, granite and wooden etc
Core Solid non-combustible aluminum corrugation core
Fire Retradant Grade A2 Grade
MOQ 500 Sqm per color
Weight 3.5-6KG/SQM
MEMO Non-standard sizes and special colors can be customized according to customers’ offers.


aluminum corrugated Panel

Aluminum corrugated panels are versatile and can be used in a variety of applications in residential, commercial, and industrial buildings. include:Roofing,Siding,Ceilings,Wall cladding,Fencing and barriers etc

Product Characteristics

1、A grade Fire resistance
3、Long durability, share same life with building

aluminum corrugated Panel

Alumetal Metal Composite Panel include Metal (Alumi.num, Steel, Stainless steel, Copper, Titanium zinc, Titanium) plastic panel, Metal(AluminumSteel, Stainlesssteel, Copper Titanium zinc, Titanium) HoneycombPanel, Metal(Aluminum, Steel, Stainless steel, CopperTitanium zinc, Titanium) Corrugated Panel, etc.


Our Certificate

Product Process

Packaging & Shipment

1) LCL by wooden pallet package ,fumigation wooden pallet is available2)FCL by wooden pallet package loaded in the container
3)FCL in bulk loaded in the container
4) Customized package according to your demands

7-15 days after receipt of payment(depend on order quantity).
lmportant shipping particular will be sent to you by E-mail after delivery of the goods.

Sample Availability & Policy:

Sample courier freight will be paid by buyer
which can be refunded after order placed ,or send freely

packaging shipment
Product Characteristics
  • 1) Our aluminum composite panel is with light weight, high intensity, and easy to maintain, cut, bend, arch and install. The panel average weight is 3.5 – 5.5 kg/sqm
  • 2) Alumetal aluminum composite panel is extremely good resistance against weather, acidity and alkaline, great thermal insulation, acoustic insulation and damping
  • 3) Alumetal aluminum composite panel surface is dust-proof treated, smooth, flat and easy to maintain; just a neutral cleaner with water can totally renew the panel
  • 4) The aluminum surface is tough and the core PE panel is flexible to give the panel high impact resistance
  • 5) Fireproof and noise absorptive (the PE core absorbs noise and the aluminum resists fire)

A1:1. MOQ (Minimum Order Quantity): 500m² but it can be less if we have stocks

2. Delivery Time: within 15 days after receiving deposit

3. Payment: 30% TT in advance ,70% against BL of copy or LC

A2:Yes, stable good quality is key for long time business cooepration.

Factory have passed ISO9001:CE SGS, etc .

A3: Yes, OEM accept. Just need to give us yours logo, we will send some protective film design for your choose

A4: 1. Width: 1000-1575mm; 1220mm, 1250mm, 1500mm are recommended.

2. Length: accept custom length, recommend 2440mm, 3050mm, 4050mm, 5000mm

3. Panel Thickness:2mm-6mm; recommend 3,4mm

4.Aluminum thickness:0.05-0.5mm

A5: Yes, samples are available if you are interested in our products.

Want to Know more details about this product
